B6707S-001 Wood Pattern Sandwich Panel

exterior metal panel

Get a Quote Now

Description

Reviews

Wood Facade Panels

Why wood facade panels is a Better Choice ...... wood facade panels provide an exceptionally warm and natural look to buildings. As a result, this natural building material is becoming increasingly popular for both large and small projects. However, if you are looking for sustainable, low-maintenance wood facades, "real" wood is not always the best choice. There is a great alternative to wood: façade cladding with the look of authentic wood, combining the benefits of wood and stone.

Wood facade panels for exterior use in areas such as ventilated facades, curved facades and louvers, Baikal is flexible with a variety of finishes, mounting systems and format options, making it ideal for projects that require unique facade elements. The material wraps the building in a stable and strong covering that projects a sound and natural appearance while coexisting with the surrounding environment.

It is a bioclimatic building solution that takes into account the surrounding climate and natural conditions in order to minimize the impact on the environment. Its main advantage is energy efficiency. In addition to providing insulation, it reduces heat dissipation in the colder months and heat absorption in the warmer months, thus significantly improving comfort. These advantages, combined with a sophisticated and attractive appearance, make ventilated facades an ideal system for building renovation.

Wood facade panels have several advantages, including:

Natural appearance: Wood is a natural material that adds warmth and texture to a building's exterior.

Durability: When properly treated and maintained, wood can be a durable material for outdoor use.

Energy efficiency: Wood is a good insulator and can help reduce energy costs by keeping buildings warm in the winter and cool in the summer.

Sustainability: Wood is a renewable resource and is biodegradable, making it a more environmentally friendly choice than some other building materials.

Versatility: Wood can be painted, stained, or treated in a variety of ways to match the aesthetic of the building or to complement the surrounding environment.

Cost-effectiveness: Compared to some other building materials, wood is relatively inexpensive, making it a cost-effective choice for many building projects.

Structure

· 3 layers:

· Surface: 0.3 mm Al-zn alloy coated steel sheet (Al 55%, Zn 43%)

· Middle: 16mm PU foam

· Back : Aluminium foil paper

· Size: Length (3000mm-6000mm) * Width:380mm * Thickness: 16mm

· Weight: 3.7kgs/sqm

Application

Baikal Sandwich panel is widely used for Exterior wall cladding and Interior wall Insulation and Decoration in the filed of PEB house, Villa, Steel Structure buildings, Hospital, Old Building renovation, School, Library, Supermarket, Plant, Train Station, Residence and so on!

Product Details

Outstanding performance

1. Decoration & beautify

Free combination of different color with different pattern can produce hundreds of styles, make your building much more attractive to your customers.

2. Thermal &; Insulation

Thermal Conductivity: 0.021 W/(m·K)

Thermal resistance: 0.648 (m2·K)/W

3°~5° difference inside & outside after using Baikal sandwich panels.

3. Water proof & Fire proof

It is the basic Characteristic for exterior wall panel, for the surface is Galvanized steel sheet, inner side is Aluminium foil paper, good water resistance & fire resistance.

4. Energy-saving

Energy saving: air condition usage=1/3--1/5 energy before install panel

16mm Baikal sandwich panel =500mm common brick=1200mm mortar

5. No rust, No fade, Long lifetime.

Al 55% + 43% Zn Alloy steel sheet on the panel surface! This good chemical performance identified by World & Steel Institute make the sandwich panel lifetime more than 40 years.

6. Light weight

Weight 3.7kgs/sqm, lighten building self-weight, so very hot selling for steel structure building, PEB house.

7. Easy installation

Just insert one by one and fix by screw, very easy!

About 30 sqm per person per day average, so widely used for speed house.

8. Eco-friendly

Dry construction, no need water, no need concrete, no dust, no, Pollution, no noise.

9. Easy Maintenance

Self-cleaning by rain or water

PU Sandwich Panels

We can provide the following 13 pattern PU sandwich panels

1. Small Brick Pattern Sandwich Panel

2. Big Brick pattern Sandwich Panel

3. Stone Pattern Sandwich panel

4. Tile Pattern Sandwich Panel

5. Mosaic Pattern Sandwich Panel

6. Marble Pattern Sandwich Panel

7. Wood Pattern Sandwich Panel

8. Wave Pattern Sandwich Panel

9. Small Stone Pattern Sandwich Panel

10. Brick Pattern Sandwich Panel

11. Big Stone Pattern Sandwich Panel

12. Flat Pattern Sandwich Panel

13. Ripple Pattern Sandwich Panel

Performance test

Baikal Sandwich panel Physical Testing Data

Testing Items	Unit	Technical Standard	Testing Result	Testing Method
Thermal conductiveity ( core material),	W/(m*k)	≤ 0.040W/(m*k)	0.024	GB/T 10297-1998
Comperssive strength	Kpa	≥ 30Kpa	52.7	JG149-2003
Water absorption	%	≤ 424%	415	JG149-2003
Density of the panel ( three layers)	kg/m2	≥ 1.7*100kg/m2	1.821*100	GB/T 6343-1995
Bending resistance under 0.5KN	mm	≤ 18.3mm	13.3	GB/T 9341-2000
Cementation strength	Mpa	> 0.1Mpa	0.18	JG 149-2003
Smog resistance	h	/	color is not changed and there is no spot of erosion	GB 5928-1986
Weather resistance	h	/	There is no damage on the surface and color changed from lever 4-5	GB/T 17657-1999

Baikal Sandwich Panel Flame Retardant of Polyurethance Foam

Testing Items	Unit	Testing Result	Testing Method
Wind -resistance data	kPa	8	JG 149-2003

Baikal Sandwich Panel Heat Insulation Comparision

Testing Items	Thermal Conductivity	The Thickness	Testing Result
Cement	0.13	7.23cm
Lumber	1.1	61.2cm
Gypsum Board	0.5	27.8cm
Common Outerwall	0.15	8.34cm
Baikal Sandwich Panel	0.018	1cm	Best result

Customer Praise:

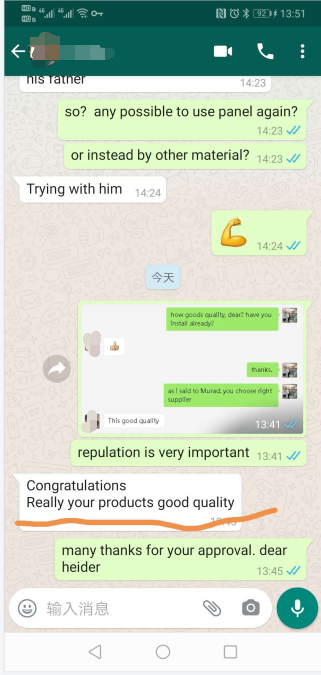

Customer from Iraq. After twice purchase, they also agree other customer’s opinion as: “Congratulations. Really your products good quality”

FAQ：

1、Are you factory? Where is the location?

Yes, we are a real professional manufacturer, not agent or distributor.

Our factory is one hour driving from Qingdao City, Shandong province. China Middle Part.

2、What’s the function of the machine?

This machine could make metal sheet to different shape at any place, any time when need by hand operation to save much money to buy building profile, We have sole invention patent in China.
